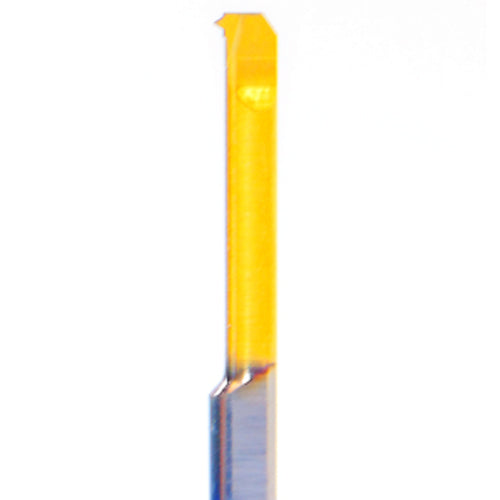

MIR 3 L15 32 UNJ BXC
Item #: FF5870400262
Brand: Carmex
Model #: 70400262
| Product Specifications | |
|---|---|
| Cutting Direction (HAND) | Right Hand |
| Minimum Bore Diameter (DMIN) | 3.3 mm |
| Cutting Edge Material | Carbide |
| Grade | BXC |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Threads per Inch (TPI) | 32 |
| Thread Angle | 60 Degrees |
| Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | Stainless Steel |
| Size | H3 |
| Coating | TiN |
| Cutting Length | 14.99 mm |
| Measurement Type | Metric |
| Internal/External | Internal |
| Overall Length (OAL) | 38.1 mm |
