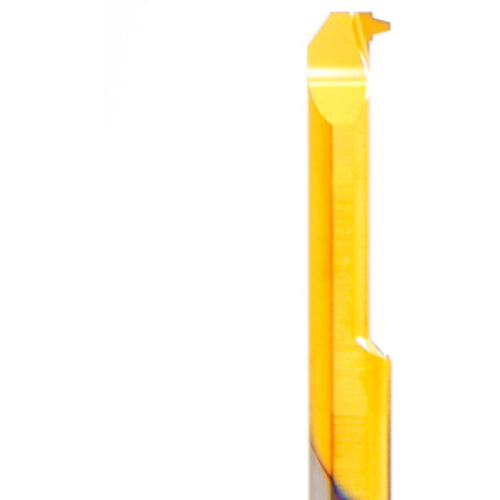

MIL 8 L30 10 ACME BXC
Item #: FF5870400271
Brand: Carmex
Model #: 70400271
| Product Specifications | |
|---|---|
| Cutting Direction (HAND) | Left Hand |
| Minimum Bore Diameter (DMIN) | 9.91 mm |
| Cutting Edge Material | Carbide |
| Grade | BXC |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Threads per Inch (TPI) | 10 |
| Thread Angle | 29 Degrees |
| Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | Stainless Steel |
| Size | H8 |
| Coating | TiN |
| Cutting Length | 29.97 mm |
| Measurement Type | Metric |
| Thread Size | 1/2 × 10 |
| Overall Length (OAL) | 76.2 mm |
| Internal/External | Internal |
