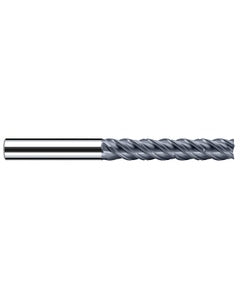

1/4″ Cutting Dia. × 1/4″ Shank Dia. × 1-3/8″ LOC × 3″ OAL, 4 Flute, Carbide, Polychrom, Square Endmill, E-Cut
Item #: FR10P98320312
Brand: Fraisa USA Inc
Model #: P98320312
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Depth of Cut Maximum (APMX) | 1-3/8″ |
| Tool Type | Square Endmill |
| Overall Length (OAL) | 3″ |
| Decimal Equivalent | 0.25″ |
| Cutting Edge Material | Carbide |
| Series/List # | E-Cut |
| Coating | Polychrom |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.004″ |
| Flute Count (NOF) | 4 |
