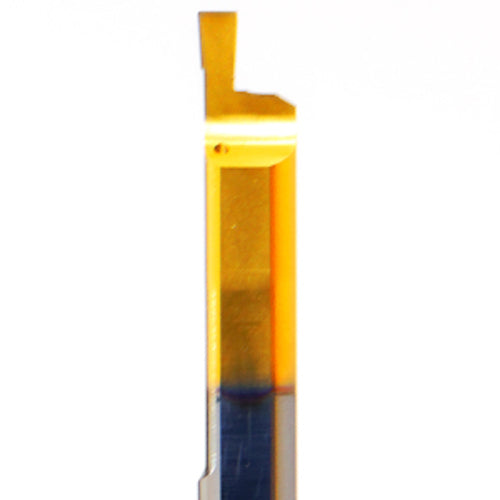

MFR 5 B2.0 L22 BXC
Item #: FF6270200035
Brand: Carmex
Model #: 70200035
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 5 mm |
| Cutting Position | Internal |
| Corner Radius (RE) | 0.1 mm |
| Application | FACE GROOVING |
| Cutting Width (CW) | 2.03 mm |
| Style | TINY TOOLS |
| Overall Length (OAL) | 50.8 mm |
| Minimum Bore Diameter (DMIN) | 6.1 mm |
| Cutting Direction (HAND) | Right Hand |
| Axial Groove Max. Dia Limit (D1MAX) | 2.54 mm |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru |
| Coating | TiN |
| Measurement Type | Metric |
| Grade | BXC |
| Size | H5 |
| Applicable Material | Stainless Steel |
