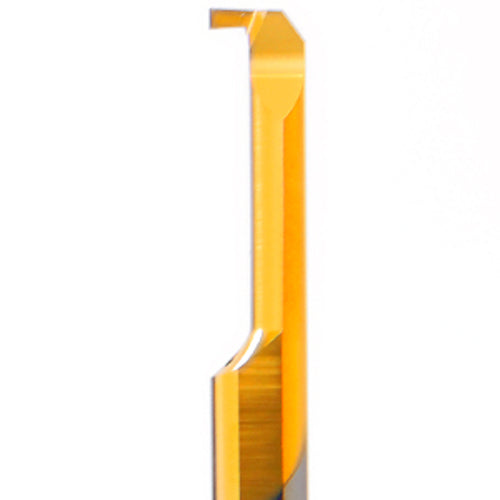

MGR 7 B1.5 L22 BXC
Item #: FF6270300048
Brand: Carmex
Model #: 70300048
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 7 mm |
| Application | GROOVING |
| Cutting Width (CW) | 1.52 mm |
| Style | TINY TOOLS |
| Overall Length (OAL) | 60.96 mm |
| Minimum Bore Diameter (DMIN) | 7.11 mm |
| Cutting Direction (HAND) | Right Hand |
| Axial Groove Max. Dia Limit (D1MAX) | 3.3 mm |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru |
| Coating | TiN |
| Insert Edge Length (INSL) | 22.1 mm |
| Grade | BXC |
| Measurement Type | Metric |
| Applicable Material | Stainless Steel |
| Size | H7 |
| Cutting Position | Internal |
