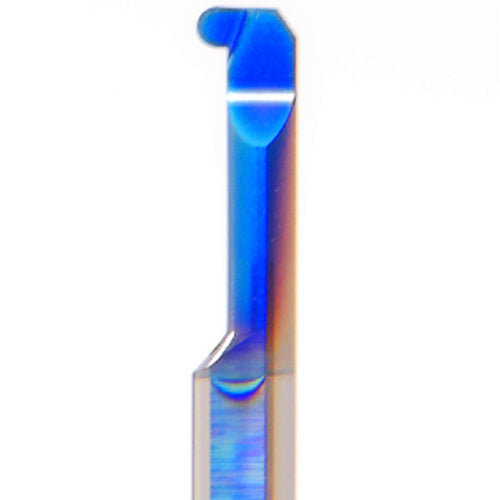

MKR 5 R0.5 L15 BMK
Item #: FF6270500016
Brand: Carmex
Model #: 70500016
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 5 mm |
| Cutting Position | Internal |
| Corner Radius (RE) | 0.51 mm |
| Application | FULL RADIUS GROOVING |
| Cutting Width (CW) | 1.02 mm |
| Style | TINY TOOLS |
| Overall Length (OAL) | 50.8 mm |
| Minimum Bore Diameter (DMIN) | 5.08 mm |
| Cutting Direction (HAND) | Right Hand |
| Axial Groove Max. Dia Limit (D1MAX) | 2.29 mm |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru |
| Coating | PVD 3x Layer Sub-Micron Coated |
| Insert Edge Length (INSL) | 14.99 mm |
| Grade | BMK |
| Measurement Type | Metric |
| Applicable Material | General Purpose |
| Size | H5 |
