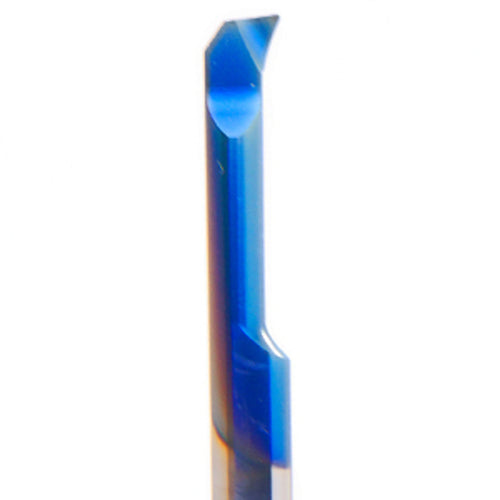

MPL 4 R0.2 L10 BMK
Item #: FF6270600153
Brand: Carmex
Model #: 70600153
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Cutting Depth Maximum (CDX) | 0.76 mm |
| Minimum Bore Diameter (DMIN) | 4.06 mm |
| Usable Length (LU) | 9.91 mm |
| Cutting Direction (HAND) | Left Hand |
| Cutting Diameter (DC) | 1.78 mm |
| Coating | PVD 3x Layer Sub-Micron Coated |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | PROFILING & BORING |
| Grade | BMK |
| Measurement Type | Metric |
| Applicable Material | General Purpose |
| Size | H4 |
| Corner Radius (RE) | 0.2 mm |
| Overall Length (OAL) | 50.8 mm |
