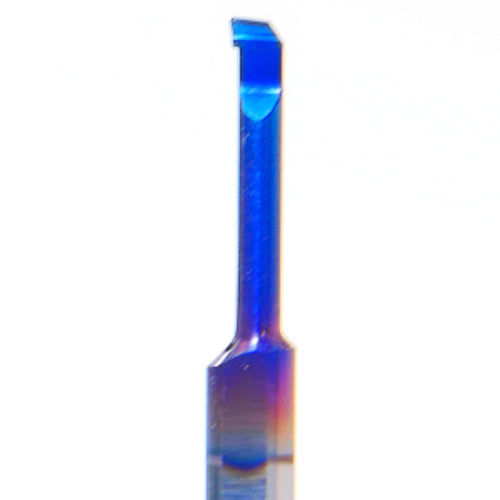

MTR 2 R0.15 L10 BMK
Item #: FF6270800049
Brand: Carmex
Model #: 70800049
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Usable Length (LU) | 9.91 mm |
| Minimum Bore Diameter (DMIN) | 2.03 mm |
| Cutting Diameter (DC) | 0.76 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
| Coating | PVD 3x Layer Sub-Micron Coated |
| Tool Type | BORING |
| Coolant Supply Property (CSP) | Coolant Thru |
| Measurement Type | Metric |
| Grade | BMK |
| Size | H3 |
| Applicable Material | General Purpose |
| Overall Length (OAL) | 38.1 mm |
| Corner Radius (RE) | 0.15 mm |
