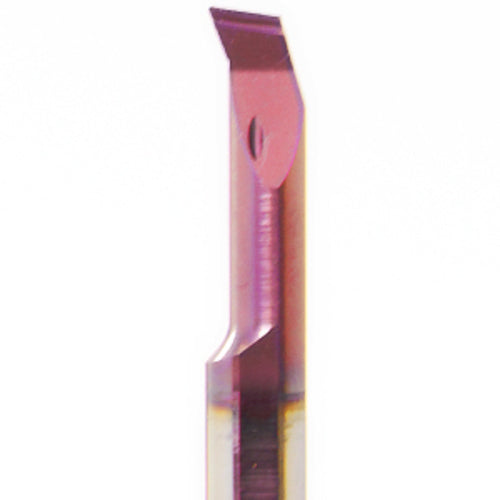

CBR 5 R0.2 L15 TNX
Item #: FF6271700003
Brand: Carmex
Model #: 71700003
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 5 mm |
| Usable Length (LU) | 0.76 mm |
| Minimum Bore Diameter (DMIN) | 5.08 mm |
| Cutting Diameter (DC) | 2.29 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide |
| Coating | Advanced Extra-Fine 3x Coating |
| Tool Type | PROFILING & BORING |
| Coolant Supply Property (CSP) | External |
| Frontal Edge Angle | 21 Degrees |
| Grade | TNX |
| Measurement Type | Metric |
| Applicable Material | General Purpose |
| Size | H5 |
| Corner Radius (RE) | 0.2 mm |
| Overall Length (OAL) | 50.8 mm |
