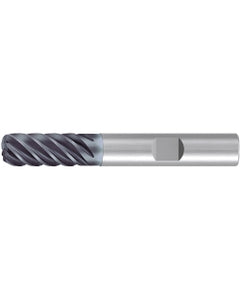

Corner Radius End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 6 FL ; Carbide ; AlCr ; 0.02″ R
Item #: ER473909L075020
Brand: EMUGE-FRANKEN
Model #: 3909L.075020
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Flute Count (NOF) | 6 |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Shank Type | HB |
| Depth of Cut Maximum (APMX) | 1-1/2″ |
| End Shape | Corner Radius |
| Overall Length (OAL) | 4″ |
| Decimal Equivalent | 0.75″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
| Coating | AlCr |
