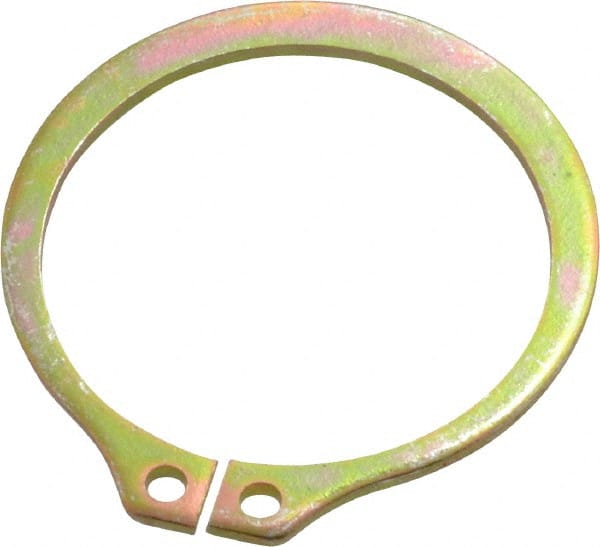

Rotor Clip - 11/16" Shaft Diam, 0.646" Groove Diam, Spring Steel External SH Style Retaining Ring
Item #: 99622490
Brand: Rotor Clip
Model #: SH-68ST MCD
Features and Benefits
SH style external retaining rings refer to shaft style and is applied externally onto the shaft of a workpiece. The SH ring is installed by separating the lugs, then being released into a groove.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| Type | SH Style |
| System of Measurement | Inch |
| Shaft Diameter (Inch) | 11/16 |
| Groove Diameter (Decimal Inch) | 0.6460 |
| Free Diameter (Decimal Inch) | 0.6350 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Spring Steel |
| Finish/Coating | Zinc Yellow Dichromate |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.0460 |
| Groove Depth (Decimal Inch) | 0.0210 |
| Ring Thickness (Decimal Inch) | 0.0420 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0040 to 0.0030 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.010 to 0.005 |
| Ring Thickness Tolerance (Decimal Inch) | 0.0020 to 0.0020 |
