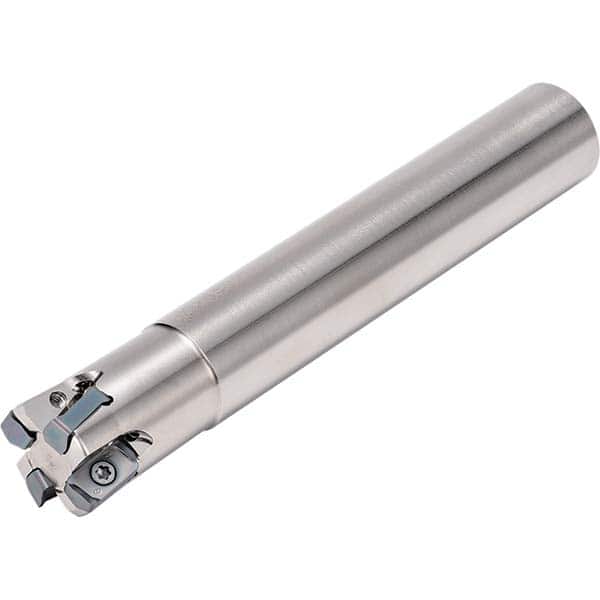

Kyocera - Indexable High-Feed End Mills Maximum Depth of Cut (mm): 25.40 Maximum Depth of Cut (Decimal Inch): 1.0000
Item #: 16390312
Brand: Kyocera
Model #: 8609376
Product Specifications
Indexable High-Feed End Mills; Maximum Depth of Cut (mm): 25.40 ; Maximum Depth of Cut (Decimal Inch): 1.0000 ; Shank Type: Cylindrical ; Shank Diameter (mm): 25.4000 ; Shank Diameter (Decimal Inch): 1.0000 ; Number of Cutter Inserts: 4
| Maximum Depth of Cut (mm) | 25.40 |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.4000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Cutter Inserts | 4 |
| Insert Style | LOGU03 |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Number of Flutes | 4 |
| Maximum RPM | 13400.000 |
| Through Coolant | Yes |
| Head Length (Decimal Inch) | 2.5000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Overall Length (mm) | 139.7000 |
| Overall Length (Decimal Inch) | 5.50000 |
| Toolholder Material | Steel |
| Series | MFH-Mini |
| Lead Angle | 10 |
| Head Length (mm) | 63.50 |
| Manufacturers Catalog Number | MFH1000S100034T55 |
