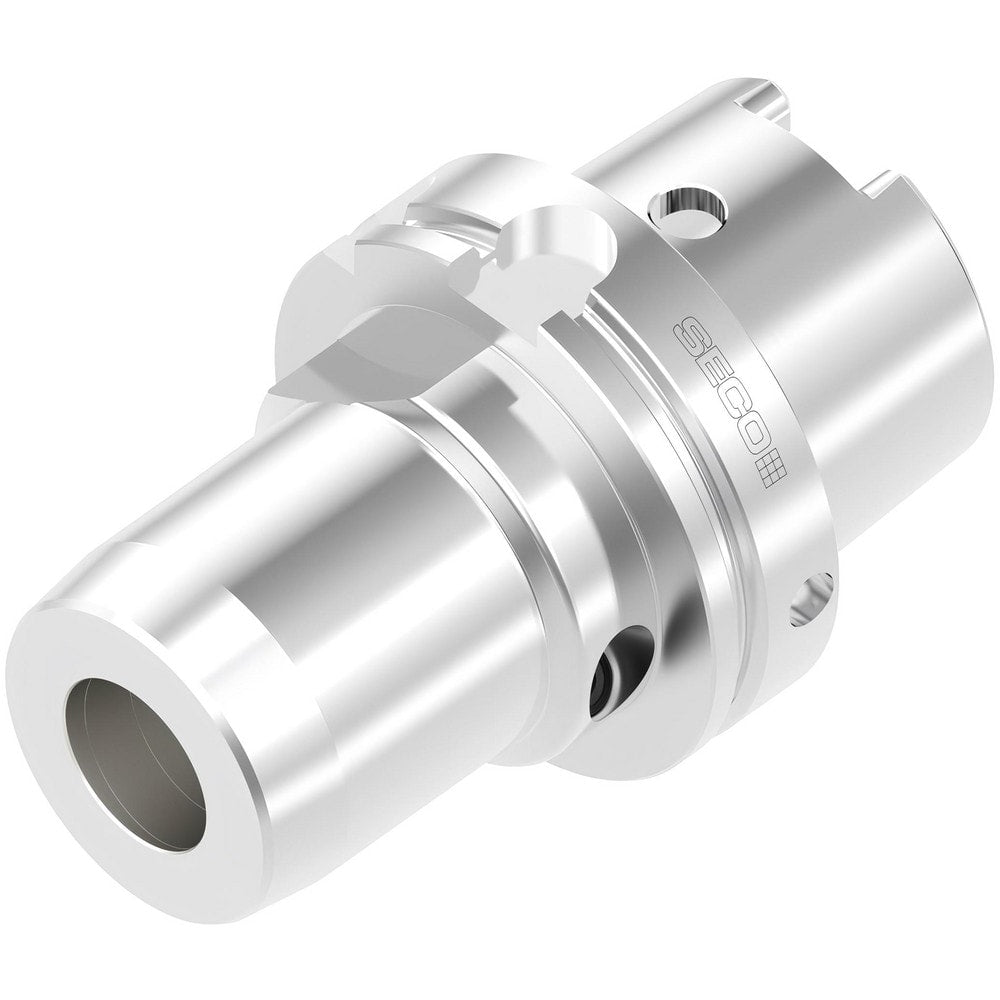

Brand: Seco / Part #: 10137271
Item #: 98632276
Brand: Seco
Model #: 10137271
Product Specifications
| Shank Type | Taper |
| Connection Size | HSK100A |
| Taper Size | HSKA100 |
| Chuck Hole Diameter | 16.00 |
| Nose Diameter (Mm) ( - 2 Decimals) | 38.00 |
| Projection (mm) | 71.050 |
| Clamping Depth (mm) | 50.50 |
| Balanced To Rpm | 25 |
| Through Coolant | Yes |
| Overall Length (mm) | 149.9000 |
| Series | HC16 |
| Material | Steel |
| Cutting Direction | Neutral |
| Number Of Pieces | 1.000 |
| C-Projection Gage Line to Nose End (Decimal Inch) | 3.94 |
| Hole Diameter (Mm) ( - 0 Decimals) | 16.0000 |
| Body Diameter (Decimal Inch) | 1.9783 |
