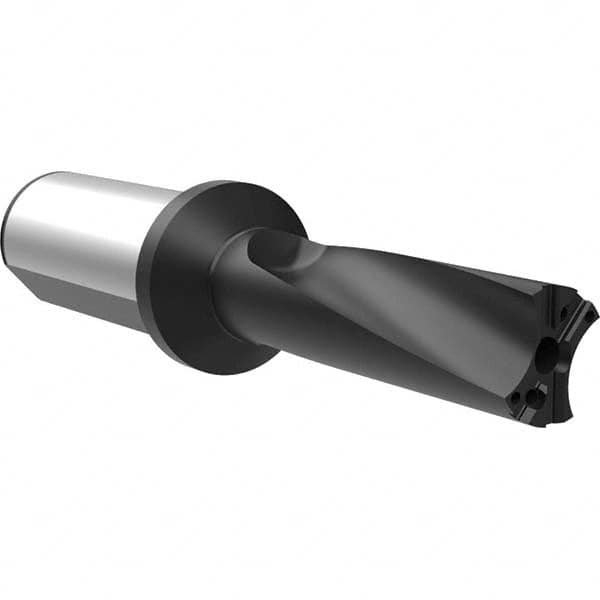

Allied Machine and Engineering - Drill Bodies Series: APX 33 Head Connection Size: 33
Item #: 16975823
Brand: Allied Machine and Engineering
Model #: W3303H-40FM
Product Specifications
Drill Bodies; Series: APX 33 ; Head Connection Size: 33 ; Drill Depth by Diameter Ratio: 3xD ; Shank Taper Size: Flanged ; Shank Diameter (mm): 40.00 ; Drill Body Length to Flange (mm): 167.40
| Series | APX 33 |
| Head Connection Size | 33 |
| Drill Depth by Diameter Ratio | 3xD |
| Shank Taper Size | Flanged |
| Shank Diameter (mm) | 40.00 |
| Drill Body Length to Flange (mm) | 167.40 |
| Toolholder Style | Flanged Straight |
| Nose Diameter (mm) | 37.99 |
| Nose Diameter (Decimal Inch) | 1.4960 |
| Overall Length (mm) | 237.40 |
| Gage Length (mm) | 167.40 |
| Shank Length (mm) | 70.00 |
| Through Coolant | Through Coolant ;Yes |
| Coolant Hole Thread Type | NPT |
| Coolant Hole Thread Size (Inch) | 1/4 |
