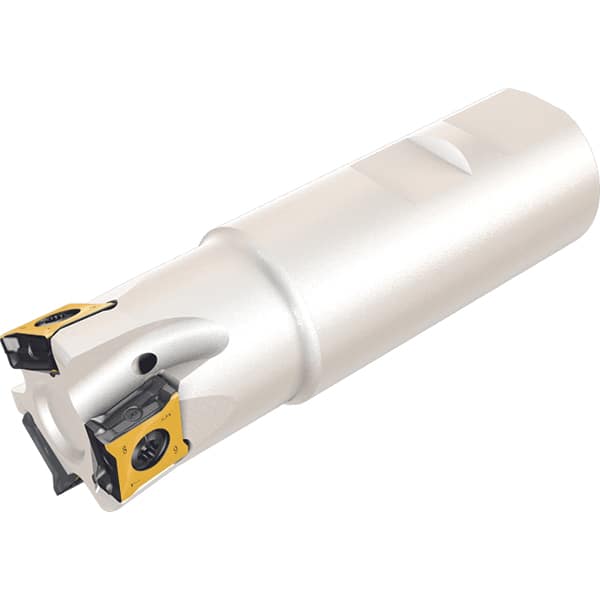

Iscar - Indexable Square-Shoulder End Mills Cutting Diameter (mm): 40.00 Cutting Diameter (Decimal Inch): 1.5740
Item #: 15111131
Brand: Iscar
Model #: 3315278
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (mm): 40.00 ; Cutting Diameter (Decimal Inch): 1.5740 ; Shank Type: Cylindrical ; Shank Diameter (mm): 32.0000 ; Shank Diameter (Decimal Inch): 1.2590 ; Overall Length/Projection (mm): 130.00
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5740 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.0000 |
| Shank Diameter (Decimal Inch) | 1.2590 |
| Overall Length/Projection (mm) | 130.00 |
| Overall Length/Projection (Decimal Inch) | 5.1180 |
| Series | T890HT |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 9.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Weldon Flat | No |
| Toolholder Material | Steel |
| Toolholder Material | Steel |
| Through Coolant | Coolant Through |
| Shank Diameter (Decimal Inch) | 1.2590 |
| Series | T890HT |
| Overall Length (Decimal Inch) | 5.11800 |
| Insert Holding Method | Screw |
