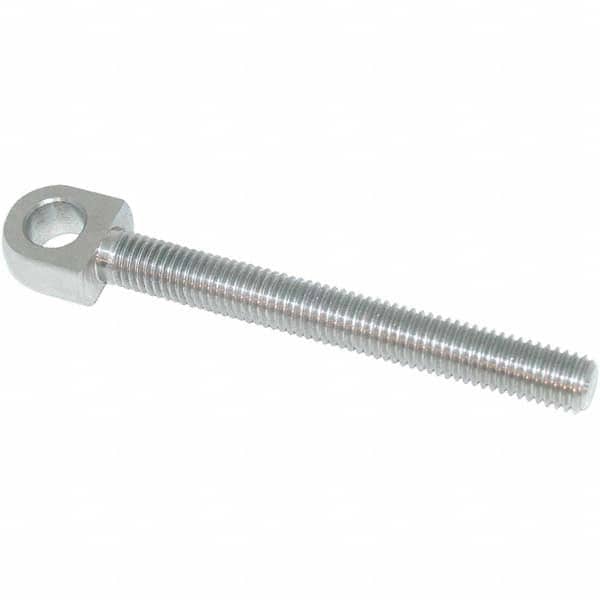

TE-CO - Swing Bolts Type: Swing Bolt System of Measurement: Inch
Item #: 30291587
Brand: TE-CO
Model #: 43030
Features and Benefits
Swing bolts have thick heads, short shanks and threads that do not extend up to the head. Their large, wide heads give them more clearance to pivot in linking applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Product Specifications
Swing Bolts; Type: Swing Bolt ; System of Measurement: Inch ; Thread Size (Inch): 5/8-11 ; Hole Diameter (Inch): 5/8 ; Hole Center To End (Inch): 4-3/4 ; Material: Stainless Steel
| Type | Swing Bolt |
| System of Measurement | Inch |
| Thread Size (Inch) | 5/8-11 |
| Hole Diameter (Inch) | 5/8 |
| Hole Center To End (Inch) | 4-3/4 |
| Material | Stainless Steel |
| Thread Length (Inch) | 2-1/2 |
| Head Thickness (Inch) | 3/4 |
| Head Width (Inch) | 1-1/4 |
| Thread Standard | UNC |
