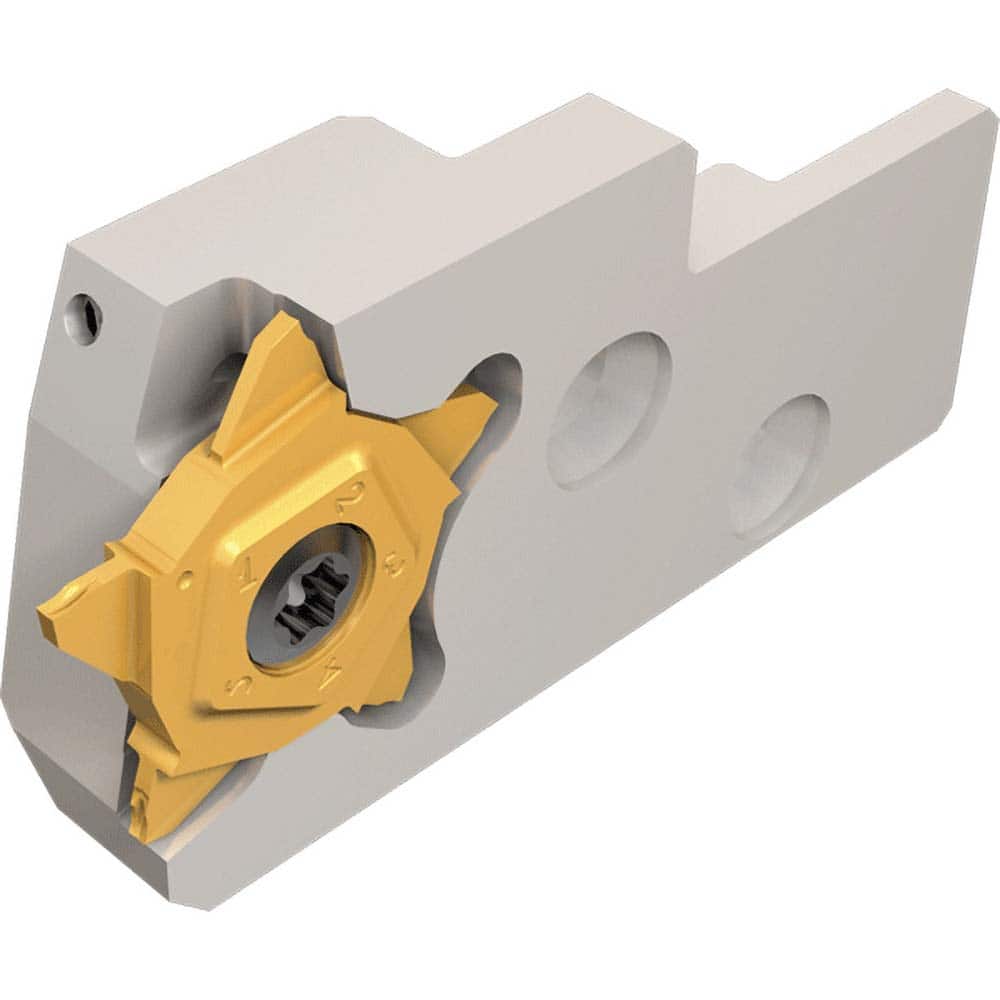

Iscar - Modular Grooving Cutting Unit Heads System Size: PCAD Series Name: PENTACUT
Item #: 11201514
Brand: Iscar
Model #: 3342960
Product Specifications
Modular Grooving Cutting Unit Heads; System Size: PCAD ; Series Name: PENTACUT ; Cutting Direction: Right Hand ; Modular Head Style: Blade Holder Head ; Insert Style: Penta24 ; Head Length/Projection (mm): 55.30
| System Size | PCAD |
| Series Name | PENTACUT |
| Cutting Direction | Right Hand |
| Modular Head Style | Blade Holder Head |
| Insert Style | Penta24 |
| Head Length/Projection (mm) | 55.30 |
| Head Length/Projection (Decimal Inch) | 2.1771 |
| Through Coolant | Coolant Through |
| Maximum Groove Width (mm) | 3.18 |
| Maximum Groove Width (Decimal Inch) | 0.1251 |
| Complete Insert Compatibility | Penta |
| Minimum Groove Width (mm) | 0.50 |
| Minimum Groove Width (Decimal Inch) | 0.0196 |
