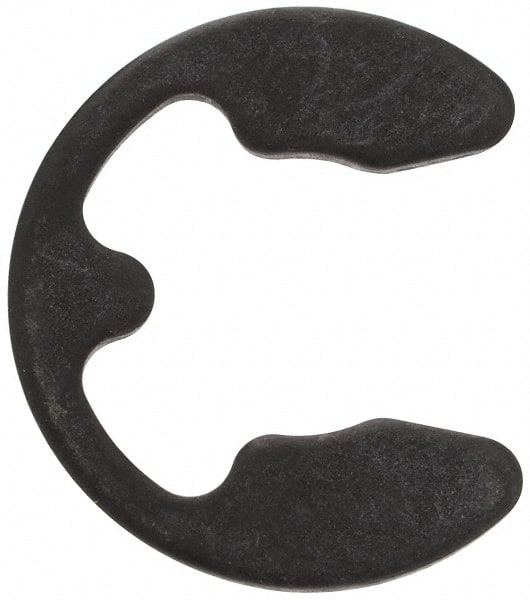

Rotor Clip - 32 to 42mm Shaft Diam, 30mm Groove Diam, Spring Steel Metric External E Style Retaining Ring
Item #: 99621922
Brand: Rotor Clip
Model #: DE-30ST PD
Features and Benefits
E-style external retaining rings snap into grooves from the side of a shaft. They are ideal for use on small-diameter shafts. E-style retaining rings are also referred to as radially installed or side-mount retaining rings.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| Type | E Style |
| System of Measurement | Metric |
| Shaft Diameter (mm) | 32.00 to 42.00 |
| Groove Diameter (mm) | 30.00 |
| Free Outside Diameter (mm) | 51.30 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Spring Steel |
| Finish/Coating | Phosphate |
| Material Grade | 1060-1090 |
| Nominal Size (mm) | 30.00 |
| Groove Width (mm) | 2.55 |
| Ring Thickness (mm) | 2.50 |
| Minimum Shaft Diameter (mm) | 32.00 |
| Maximum Shaft Diameter (mm) | 42.00 |
| Groove Width Tolerance (mm) | 0.000 to 0.080 |
| Ring Thickness Tolerance (mm) | -0.030 to 0.030 |
