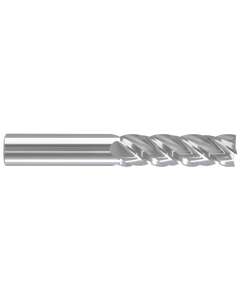

5/8-4FL FUSION-LG 2-1/4x5 w/.030R
Item #: MW21284000755
Brand: Monster Tool Company
Model #: 284-000755
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Application | | Profiling | Rampdown | Profile Cutting | Radiusing | Radius Slotting | |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Corner Radius (RE) | 0.03″ |
| Depth of Cut Maximum (APMX) | 2-1/4″ |
| Grade | C-2 Sub-Micron |
| Overall Length (OAL) | 5″ |
| Length Group | Long |
| Cutting Edge Material | Solid Tungsten Carbide |
| Decimal Equivalent | 0.625″ |
| Coating | Bright |
| Series/List # | 284 |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | Variable |
| Single / Double End | Single End |
| End Shape | Corner Radius |
| Center Cutting | Yes |
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
