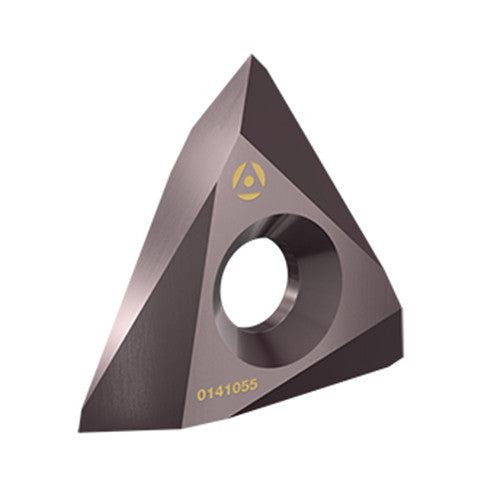

TNMC 43 NV GP50C
Item #: FG310141000N4
Brand: Tool-Flo
Model #: 2414265
| Product Specifications | |
|---|---|
| Corner Radius (RE) | 0.006″ |
| Applicable Material | | Steel | Stainless Steel | |
| Insert Thickness (S) | 0.189″ |
| Threads per Inch Maximum (TPIX) | 24 Threads/" |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Threads per Inch Minimum (TPIN) | 5 Threads/" |
| Grade | GP50C TiN |
| Measurement Type | Inch |
| Coating | TiCN+TiN |
| Body Material | Carbide |
| Cutting Edge Material | Carbide |
| Thread Form Type (THFT) | 60?° Partial V-Thread Profile |
| Cutting Direction (HAND) | Neutral |
