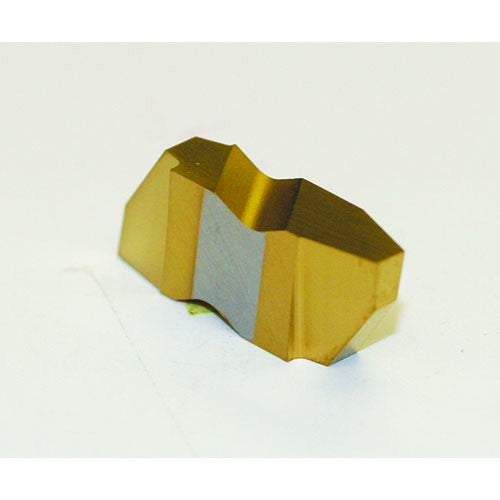

FLA-3L5 AC50C
Item #: FG31021680
Brand: Tool-Flo
Model #: 2413083
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.0689″ |
| Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.149″ |
| Cutting Direction (HAND) | Left Hand |
| Thread Pitch Maximum (TPX) | 0.344″ |
| Measurement Type | Inch |
| Insert Thickness (S) | 0.195″ |
| Threads per Inch (TPI) | 5 |
| Coating | AlTiN |
| Cutting Edge Length (L) | 0.4026″ |
| Grade | AC50C |
| Height | 0.344″ |
| Shape | Parrallelogram |
