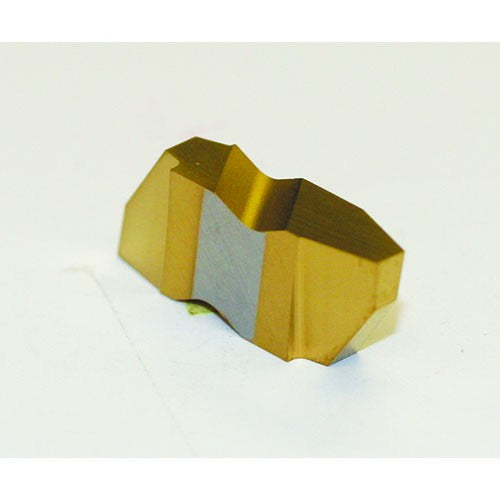

FLA-3L6 AC3R
Item #: FG31021760
Brand: Tool-Flo
Model #: 2413087
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.0566″ |
| Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.149″ |
| Cutting Direction (HAND) | Left Hand |
| Thread Pitch Maximum (TPX) | 0.344″ |
| Measurement Type | Inch |
| Insert Thickness (S) | 0.195″ |
| Threads per Inch (TPI) | 6 |
| Coating | AlTiN |
| Cutting Edge Length (L) | 0.4026″ |
| Grade | AC3R |
| Height | 0.344″ |
| Shape | Parrallelogram |
