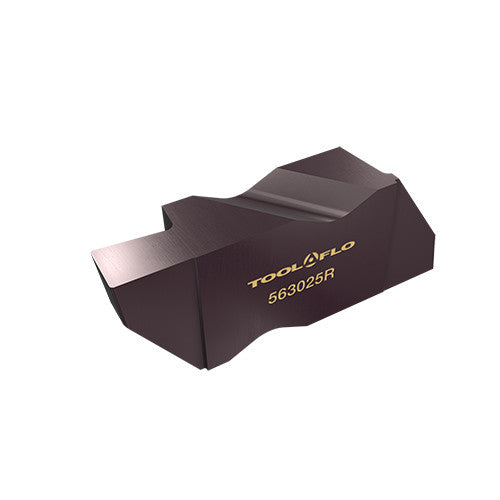

FLF-4189R-CB AC50C
Item #: FG31025420
Brand: Tool-Flo
Model #: 2487106
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.189″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.636″ |
| Application | | Int Ext Face Grooving Flo Lock | |
| Corner Radius (RE) | 0.0225″ |
| Chip Breaker Type | HCB |
| Cutting Depth Maximum (CDX) | 1/4″ |
| Depth of Cut Maximum (APMX) | 1/4″ |
| Insert Thickness Total (S1) | 0.453″ |
| Measurement Type | Inch |
| Shape | Parrallelogram |
| Body Material | Carbide |
| Grade | AC50C AlTiN |
