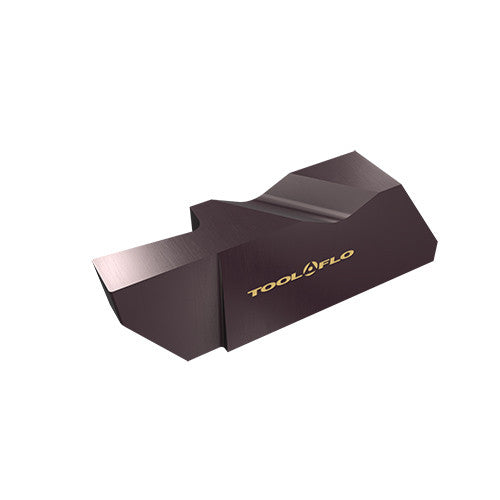

FLFD-3125LI AC50C
Item #: FG31025600
Brand: Tool-Flo
Model #: 2486786
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 1/8″ |
| Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.505″ |
| Application | | Int Ext Face Grooving Flo Lock | |
| Corner Radius (RE) | 0.0075″ |
| Length | 0.505″ |
| Cutting Depth Maximum (CDX) | 0.27″ |
| Depth of Cut Maximum (APMX) | 0.27″ |
| Insert Thickness Total (S1) | 0.344″ |
| Measurement Type | Inch |
| Shape | Parrallelogram |
| Body Material | Carbide |
| Grade | AC50C AlTiN |
| Insert Thickness (S) | 0.195″ |
