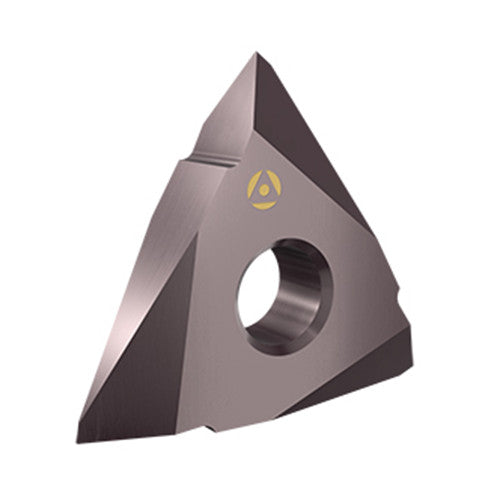

TPMA 32 NV AC3R
Item #: FG31065740
Brand: Tool-Flo
Model #: 2487210
| Product Specifications | |
|---|---|
| Corner Radius (RE) | 0.004″ |
| Application | | Int Ext Threading On Edge | |
| Insert Thickness (S) | 0.127″ |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Hi Temp Alloys | |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Threads per Inch Maximum (TPIX) | 36 Threads/" |
| Grade | AC3R AlTiN |
| Threads per Inch Minimum (TPIN) | 8 Threads/" |
| Coating | TiAlN |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Cutting Direction (HAND) | Neutral |
| Thread Form Type (THFT) | 60?° Partial V-Thread Profile |
| Angle | 5 Degrees |
