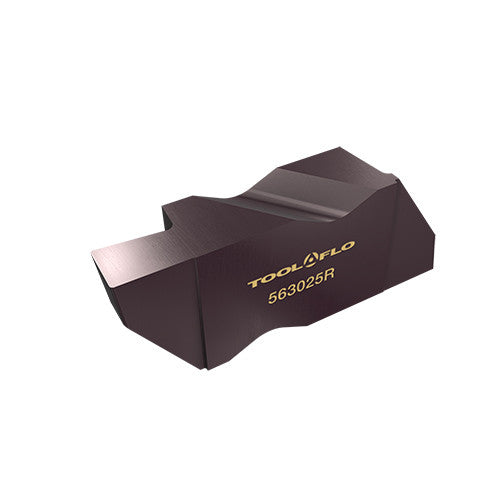

FLF-3156L-CB AC3R
Item #: FG312417804
Brand: Tool-Flo
Model #: 2417804
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.156″ |
| Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.405″ |
| Application | | Int Ext Face Grooving Flo Lock | |
| Corner Radius (RE) | 0.0075″ |
| Chip Breaker Type | HCB |
| Cutting Depth Maximum (CDX) | 0.18″ |
| Length | 0.405″ |
| Insert Thickness Total (S1) | 0.344″ |
| Depth of Cut Maximum (APMX) | 0.18″ |
| Shape | Parrallelogram |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Hi Temp Alloys | |
| Body Material | Carbide |
| Grade | AC3R AlTiN |
| Insert Thickness (S) | 0.195″ |
