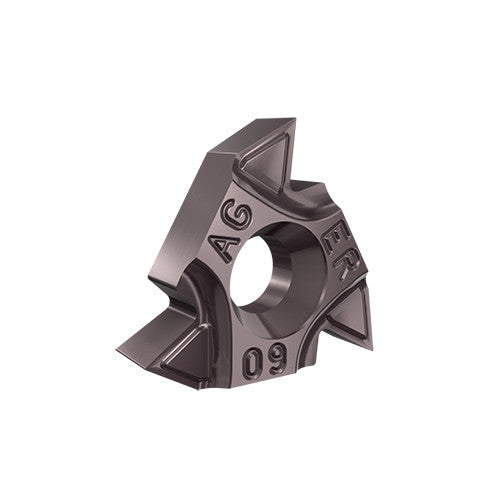

22ER N60 C22
Item #: FG312449372
Brand: Tool-Flo
Model #: 2449372
| Product Specifications | |
|---|---|
| Thread Standard | THFT |
| Chip Breaker Type | Z |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Shape | Triangle |
| Insert Length (INSL) | 0.87″ |
| Threads per Inch Minimum (TPIN) | 5 Threads/" |
| Corner Radius (RE) | 0.0165″ |
| Threads per Inch Maximum (TPIX) | 7 Threads/" |
| Grade | C22 Uncoated |
| Thread Pitch Minimum (TPN) | 3.5 mm |
| Coating | Uncoated |
| Thread Pitch Maximum (TPX) | 5 mm |
| Cutting Edge Material | Carbide |
| Tool Type | Threading Regular Inserts |
| Application | | External Thread Milling | External Threading | Treading Inserts | |
| Measurement Type | Inch |
| Applicable Material | | Stainless Steel | Non Ferrous Metals | Hi Temp Alloys | |
| Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand |
| Thread Form Type (THFT) | VP60 |
