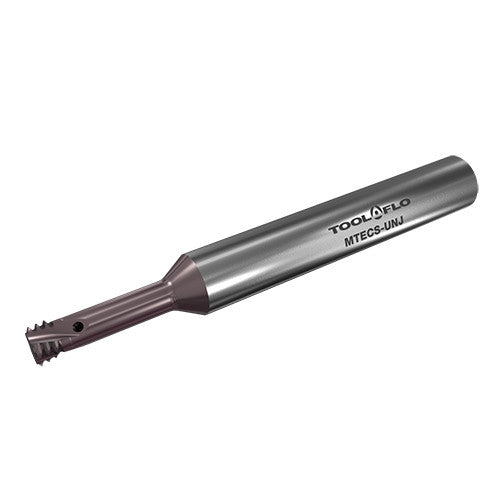

MTECS 08067C20 24UNJ AC22
Item #: FG312456084
Brand: Tool-Flo
Model #: 2456084
| Product Specifications | |
|---|---|
| Thread Pitch (TP) | 1.58 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Threads per Inch (TPI) | 24 Threads/" |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.315″ |
| Cutting Position | INT |
| Cutting Diameter (DC) | 0.264″ |
| Usable Length (LU) | 0.787″ |
| Overall Length (OAL) | 2.52″ |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Grade | AC22 TiAlN |
| Coolant Supply Property (CSP) | Through Hole |
| Tool Type | Solid carbide thread mills |
| Shank Type | Round |
| Body Material | Carbide |
| Coating | TiAlN |
| Connection Code Machine Side (CCMS) | ZYL01F8000h$06 |
| Application | | Internal Thread Milling | |
| Thread Form Type (THFT) | NJ60 |
