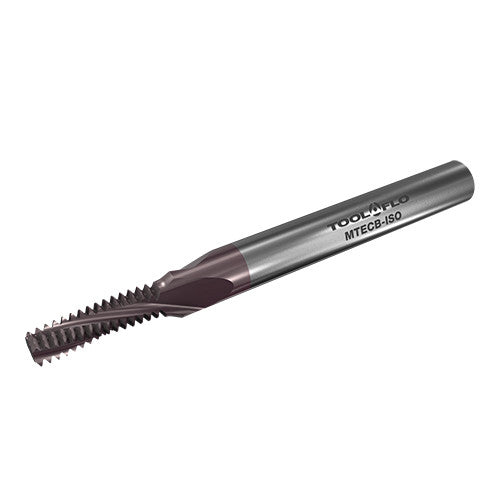

MTECB 1010D24 0.75ISO AC22
Item #: FG312456092
Brand: Tool-Flo
Model #: 2456092
| Product Specifications | |
|---|---|
| Thread Pitch (TP) | 0.75 mm |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Position | INT |
| Cutting Diameter (DC) | 10 mm |
| Usable Length (LU) | 24.4 mm |
| Overall Length (OAL) | 73 mm |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Grade | AC22 TiAlN |
| Coolant Supply Property (CSP) | Through Hole |
| Tool Type | Solid carbide thread mills |
| Shank Type | Round |
| Depth of Cut Maximum (APMX) | 24.4 mm |
| Coating | TiAlN |
| Body Material | Carbide |
| Application | | Internal Thread Milling | |
| Connection Code Machine Side (CCMS) | ZYL01R1000h$06 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Thread Form Type (THFT) | M60 |
| Flute Helix Angle (FHA) | 15 Degrees |
