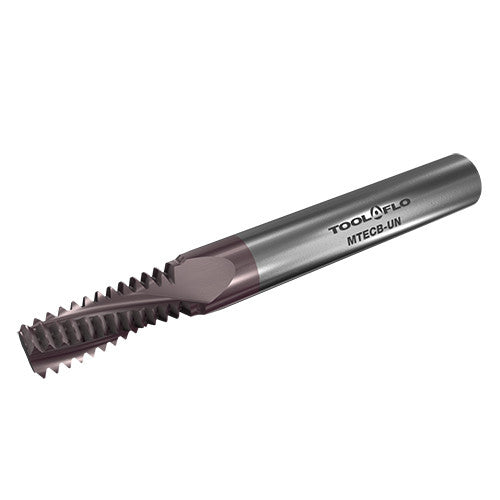

MTECB 1212D31 16UN AC22
Item #: FG312462437
Brand: Tool-Flo
Model #: 2462437
| Product Specifications | |
|---|---|
| Thread Pitch (TP) | 1.588 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Threads per Inch (TPI) | 16 Threads/" |
| Flute Helix Angle (FHA) | 15 Degrees |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 12 mm |
| Cutting Position | INT |
| Functional Length (LF) | 84 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 84 mm |
| Grade | AC22 TiAlN |
| Flute Count (NOF) | 4 |
| Tool Type | Solid carbide thread mills |
| Coolant Supply Property (CSP) | Through Hole |
| Depth of Cut Maximum (APMX) | 31 mm |
| Shank Type | Round |
| Body Material | Carbide |
| Coating | TiAlN |
| Connection Code Machine Side (CCMS) | ZYL01G1200h$06 |
| Application | | Internal Thread Milling | |
| Thread Form Type (THFT) | UN60 |
