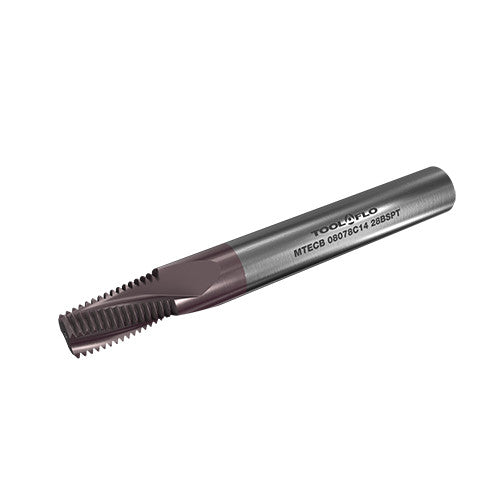

MTECB 08078C14 28BSPT AC22
Item #: FG312462444
Brand: Tool-Flo
Model #: 2462444
| Product Specifications | |
|---|---|
| Thread Pitch (TP) | 0.907 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Threads per Inch (TPI) | 28 Threads/" |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Measurement Type | Metric |
| Cutting Diameter (DC) | 7.8 mm |
| Grade | AC22 TiAlN |
| Overall Length (OAL) | 64 mm |
| Tool Type | Solid carbide thread mills |
| Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 14.1 mm |
| Shank Type | Round |
| Body Material | Carbide |
| Coating | TiAlN |
| Connection Code Machine Side (CCMS) | ZYL01F8000h$06 |
| Application | | External Thread Milling | Internal Thread Milling | |
| Thread Form Type (THFT) | BSPT55 |
