MTECZ 1010D16 18NPT AC22
Item #: FG312462496
Brand: Tool-Flo
Model #: 2462496
| Product Specifications | |
|---|---|
| Threads per Inch (TPI) | 18 Threads/" |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 0.394″ |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.394″ |
| Cutting Position | BOTH |
| Overall Length (OAL) | 2.874″ |
| Measurement Type | Inch |
| Flute Count (NOF) | 4 |
| Grade | AC22 TiAlN |
| Coolant Supply Property (CSP) | Through Hole |

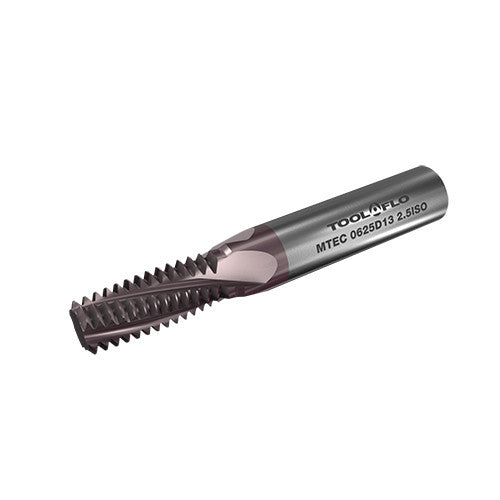

| Tool Type | Solid carbide thread mills |
| Shank Type | Round |
| Depth of Cut Maximum (APMX) | 0.638″ |
| Coating | TiAlN |
| Body Material | Carbide |
| Application | | External Thread Milling | Internal Thread Milling | |
| Thread Form Type (THFT) | NPT60 |
