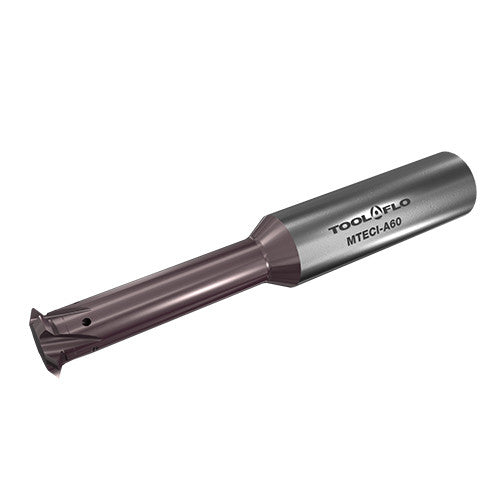

MTECI 0808D28 A60 AC22
Item #: FG312462502
Brand: Tool-Flo
Model #: 2462502
| Product Specifications | |
|---|---|
| Thread Size | =>9 |
| Pitch TPI External (TPI Ext) | 64-32 Threads/" |
| Thread Standard | UN60 |
| Pitch Internal | 0.5-0.8″ |
| Connection Diameter Machine Side (DCONMS) | 0.315″ |
| Pitch External | 0.4-0.8″ |
| Cutting Diameter (DC) | 0.315″ |
| Cutting Edge Material | Carbide |
| Overall Length (OAL) | 2.52″ |
| Cutting Position | BOTH |
| Flute Count (NOF) | 4 |
| Usable Length (LU) | 1.102″ |
| Coolant Supply Property (CSP) | Through Hole |
| Measurement Type | Inch |
| Shank Type | Round |
| Grade | AC22 TiAlN |
| Coating | TiAlN |
| Tool Type | Solid carbide thread mills |
| Application | | External Thread Milling | Internal Thread Milling | |
| Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Code Machine Side (CCMS) | ZYL01F8000h$06 |
| Pitch TPI Internal (TPI Int) | 56-28 Threads/" |
| Thread Form Type (THFT) | M60 |
