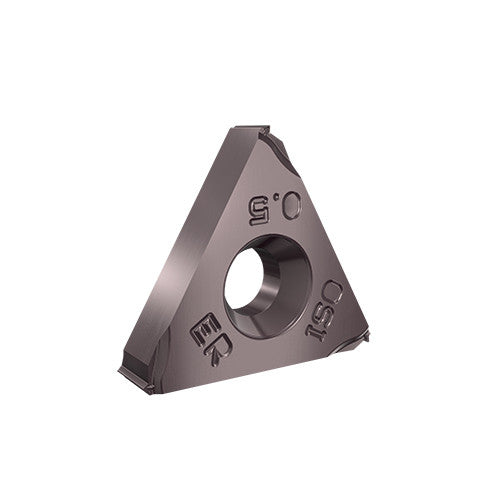

22EL 6.00ISO GP50A
Item #: FG312480892
Brand: Tool-Flo
Model #: 2480892
| Product Specifications | |
|---|---|
| Thread Standard | THFT |
| Insert Style | Laydown (LT) |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 22.1 mm |
| Chip Breaker Type | Z |
| Thread Pitch (TP) | 6 mm |
| Shape | 60° Triangle |
| Corner Radius (RE) | 0.87 mm |
| Cutting Item Count (CICT) | 1 |
| Grade | GP50A TiN |
| Tool Type | Threading Regular Inserts |
| Coating | TiCN+TiN |
| Measurement Type | Metric |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Application | | External Thread Milling | External Threading | Treading Inserts | |
| Thread Form Type (THFT) | M60 |
| Applicable Material | | Steel | Stainless Steel | |
