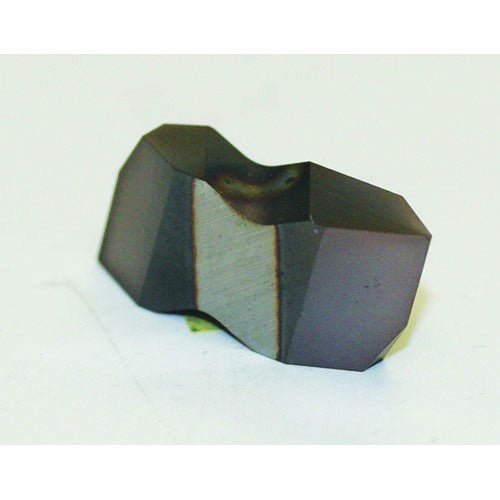

FLT-4R AC50E
Item #: FG31FLT4R
Brand: Tool-Flo
Model #: 2416877
| Product Specifications | |
|---|---|
| Threads per Inch (TPI) | INT 4-12, EXT 4-20 |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.005″ | 0.008″ |
| Thread Pitch Maximum (TPX) | 0.453″ |
| Insert Thickness (S) | 0.255″ |
| Cutting Edge Length (L) | 0.6298″ |
| Grade | AC50E |
| Insert to Shank Reference | 0.128″ |
| Coating | AlTiN |
| Pitch TPI External (TPI Ext) | 4-20 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
