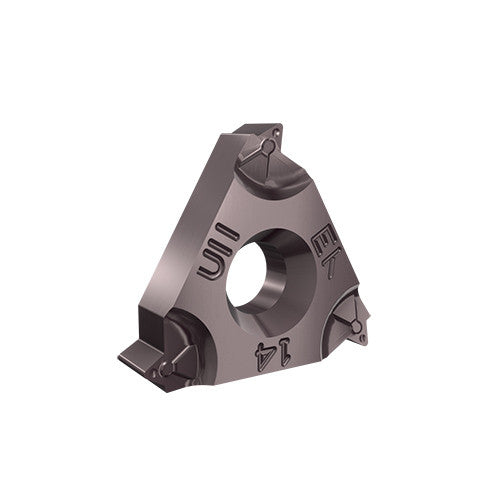

11ER 18UN C22
Item #: FG322449245
Brand: Tool-Flo
Model #: 2449245
| Product Specifications | |
|---|---|
| Thread Standard | THFT |
| Applicable Material | | Stainless Steel | Non Ferrous Metals | Hi Temp Alloys | |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.43″ |
| Shape | Triangle |
| Threads per Inch (TPI) | 18 Threads/" |
| Cutting Item Count (CICT) | 1 |
| Corner Radius (RE) | 0.0067″ |
| Tool Type | Threading Regular Inserts |
| Grade | C22 Uncoated |
| Cutting Depth Maximum (CDX) | 0.433″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Application | | External Thread Milling | External Threading | Treading Inserts | |
| Thread Form Type (THFT) | UN60 |
