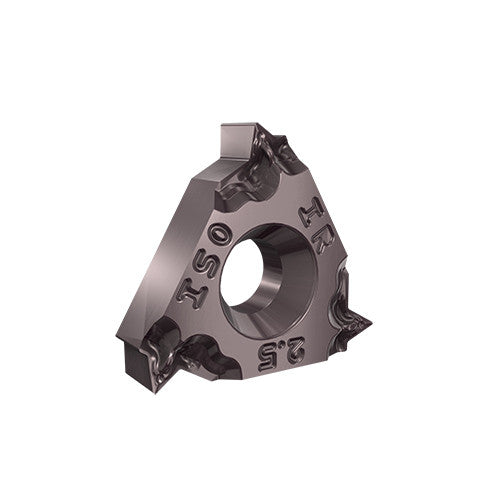

16IRM 3.00ISO GP50A
Item #: FG322450107
Brand: Tool-Flo
Model #: 2450107
| Product Specifications | |
|---|---|
| Thread Standard | THFT |
| Applicable Material | | Steel | Stainless Steel | |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.63″ |
| Chip Breaker Type | B |
| Thread Pitch (TP) | 3 mm |
| Shape | 60° Triangle |
| Corner Radius (RE) | 0.0087″ |
| Cutting Item Count (CICT) | 1 |
| Grade | GP50A TiCN | TiN |
| Tool Type | Threading Regular Inserts |
| Coating | TiCN+TiN |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Application | | Internal Thread Milling | Internal Threading lay down | Treading Inserts | |
| Thread Form Type (THFT) | M60 |
