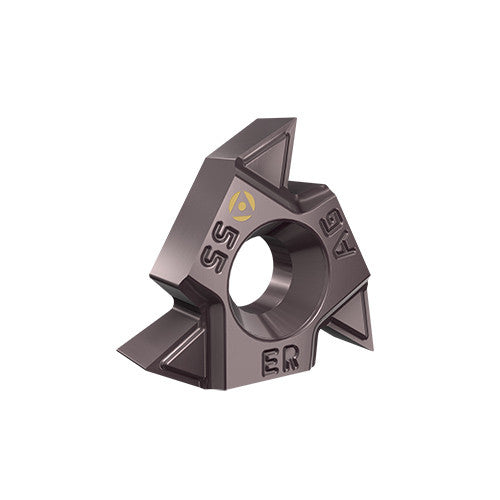

11ER A55 AC22A
Item #: FG322450178
Brand: Tool-Flo
Model #: 2450178
| Product Specifications | |
|---|---|
| Thread Standard | THFT |
| Shape | 60° Triangle |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Threads per Inch Minimum (TPIN) | 16 Threads/" |
| Insert Length (INSL) | 0.433″ |
| Threads per Inch Maximum (TPIX) | 48 Threads/" |
| Corner Radius (RE) | 0.002″ |
| Thread Pitch Minimum (TPN) | 0.5 mm |
| Grade | AC22A AlTiN |
| Thread Pitch Maximum (TPX) | 1.5 mm |
| Coating | TiAlN |
| Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Application | | External Thread Milling | External Threading | Treading Inserts | |
| Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Thread Form Type (THFT) | VP55 |
| Cutting Direction (HAND) | Right Hand |
