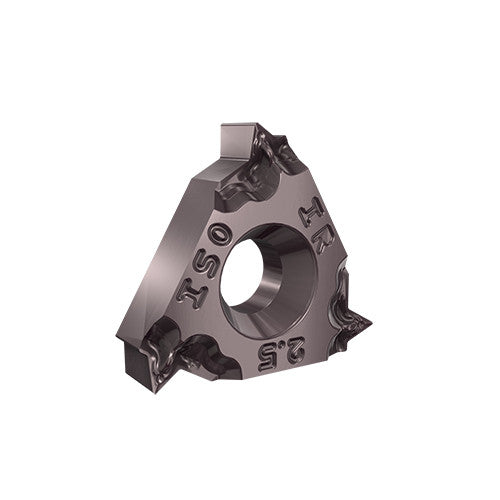

16IR 3.50ISO AC22A
Item #: FG322450372
Brand: Tool-Flo
Model #: 2450372
| Product Specifications | |
|---|---|
| Thread Standard | ISO (METRIC) |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Inscribed Circle Diameter (IC) | 9.53 mm |
| Insert Style | Laydown (LT) |
| Insert Length (INSL) | 16 mm |
| Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 3.5 mm |
| Chip Breaker Type | Z |
| Corner Radius (RE) | 0.26 mm |
| Shape | 60° Triangle |
| Insert Thickness (S) | 4.8 mm |
| Cutting Item Count (CICT) | 1 |
| Grade | AC22A AlTiN |
| Tool Type | Threading Regular Inserts |
| Coating | TiAlN |
| Measurement Type | Metric |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Application | | Int Threading Laydown | |
