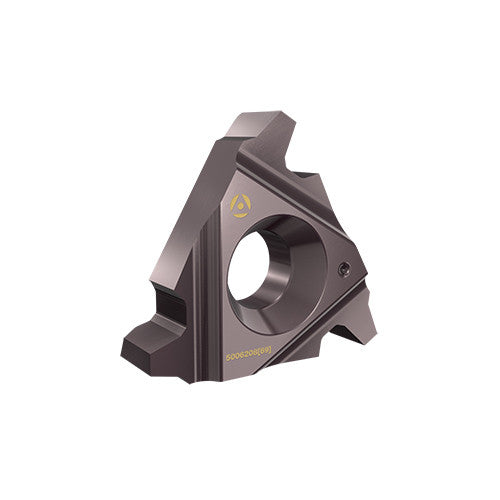

16ER 10ACME GP50A
Item #: FG322450587
Brand: Tool-Flo
Model #: 2450587
| Product Specifications | |
|---|---|
| Thread Standard | THFT |
| Application | | External Thread Milling | External Threading | Treading Inserts | |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 0.63″ |
| Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 10 Threads/" |
| Shape | 60° Triangle |
| Corner Radius (RE) | 0.0031″ |
| Tool Type | Threading Regular Inserts |
| Grade | GP50A TiCN | TiN |
| Measurement Type | Inch |
| Coating | TiCN+TiN |
| Body Material | Carbide |
| Cutting Edge Material | Carbide |
| Thread Form Type (THFT) | AC29 |
