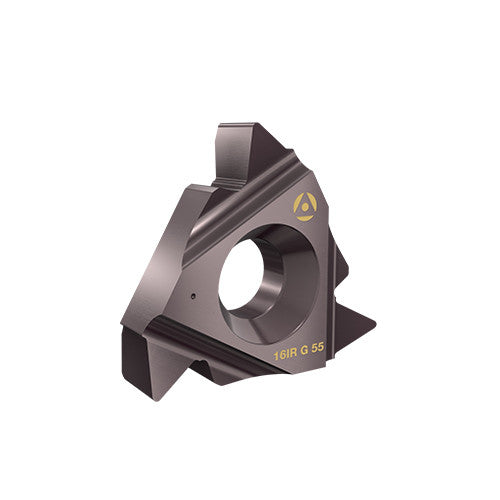

16IRM G55 TC22A
Item #: FG322450953
Brand: Tool-Flo
Model #: 2450953
| Product Specifications | |
|---|---|
| Thread Standard | THFT |
| Shape | 60° Triangle |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Threads per Inch Minimum (TPIN) | 8 Threads/" |
| Insert Length (INSL) | 0.63″ |
| Threads per Inch Maximum (TPIX) | 14 Threads/" |
| Corner Radius (RE) | 0.0079″ |
| Thread Pitch Minimum (TPN) | 1.75 mm |
| Grade | TC22A AlTiN | TiN |
| Thread Pitch Maximum (TPX) | 3 mm |
| Coating | TiAlN+AlTiN+TiN |
| Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Application | | Internal Thread Milling | Internal Threading lay down | Treading Inserts | |
| Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Hi Temp Alloys | |
| Thread Form Type (THFT) | VP55 |
| Cutting Direction (HAND) | Right Hand |
