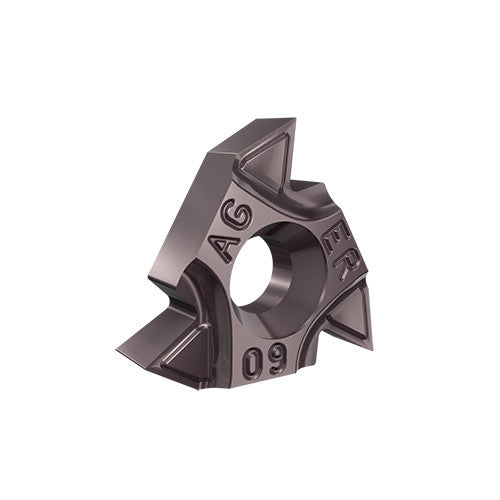

16EL G60 GP50A
Item #: FG322468128
Brand: Tool-Flo
Model #: 2468128
| Product Specifications | |
|---|---|
| Thread Standard | THFT |
| Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | Z |
| Insert Length (INSL) | 0.63″ |
| Shape | 60° Triangle |
| Corner Radius (RE) | 0.007″ |
| Threads per Inch Minimum (TPIN) | 8 Threads/" |
| Insert Thickness (S) | 0.189″ |
| Threads per Inch Maximum (TPIX) | 14 Threads/" |
| Grade | GP50A TiN |
| Thread Pitch Minimum (TPN) | 1.75 mm |
| Coating | TiCN+TiN |
| Thread Pitch Maximum (TPX) | 3 mm |
| Cutting Edge Material | Carbide |
| Tool Type | Threading Regular Inserts |
| Application | | External Thread Milling | External Threading | Treading Inserts | |
| Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | |
| Body Material | Carbide |
| Insert Style | Laydown (LT) |
| Thread Form Type (THFT) | VP60 |
