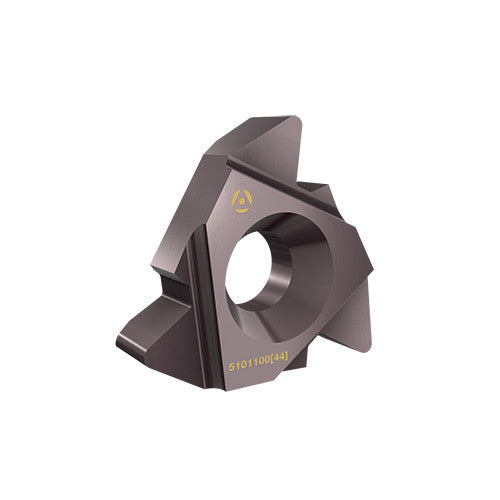

16ER 1.50MJ GP50A
Item #: FG322468178
Brand: Tool-Flo
Model #: 2468178
| Product Specifications | |
|---|---|
| Thread Standard | THFT |
| Application | | Ext Threading Laydown | |
| Inscribed Circle Diameter (IC) | 9.53 mm |
| Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 16 mm |
| Insert Style | Laydown (LT) |
| Thread Pitch (TP) | 1.5 mm |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.25 mm |
| Chip Breaker Type | Z |
| Insert Thickness (S) | 6.4 mm |
| Shape | 60° Triangle |
| Grade | GP50A TiN |
| Tool Type | Threading Regular Inserts |
| Coating | TiCN+TiN |
| Measurement Type | Metric |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
