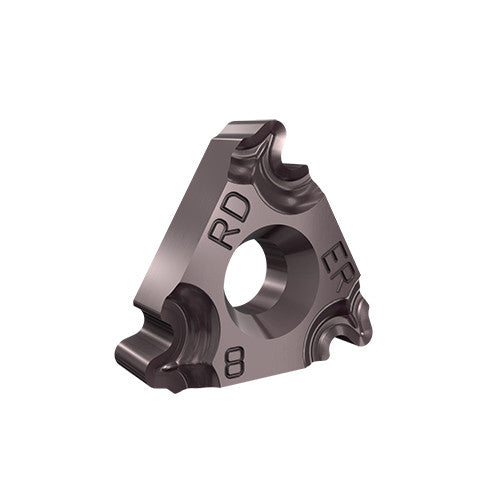

16EL 6RD DIN405 GP50A
Item #: FG322480894
Brand: Tool-Flo
Model #: 2480894
| Product Specifications | |
|---|---|
| Thread Standard | THFT |
| Insert Style | Laydown (LT) |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.63″ |
| Shape | 60° Triangle |
| Threads per Inch (TPI) | 6 Threads/" |
| Threads per Inch Minimum (TPIN) | 6 Threads/" |
| Corner Radius (RE) | 0.0398″ |
| Threads per Inch Maximum (TPIX) | 6 Threads/" |
| Grade | GP50A TiN |
| Tool Type | Threading Regular Inserts |
| Coating | TiCN+TiN |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Application | | External Thread Milling | External Threading | Treading Inserts | |
| Thread Form Type (THFT) | RN30 |
| Applicable Material | | Steel | Stainless Steel | |
