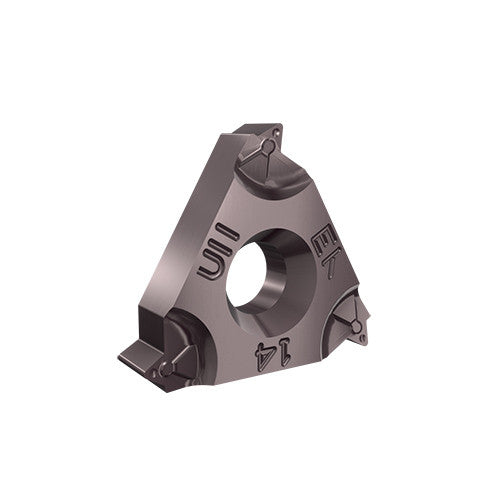

16ERB 18UN AC22A
Item #: FG325902806
Brand: Tool-Flo
Model #: 1268782
| Product Specifications | |
|---|---|
| Inscribed Circle Diameter (IC) | 3/8″ |
| Shape | Triangle |
| Insert Length (INSL) | 0.63″ |
| Cutting Item Count (CICT) | 1 |
| Threads per Inch (TPI) | 18 Threads/" |
| Threads per Inch Minimum (TPIN) | 18 Threads/" |
| Corner Radius (RE) | 0.0071″ |
| Threads per Inch Maximum (TPIX) | 18 Threads/" |
| Grade | AC22A |
| Tool Type | Threading Regular Inserts |
| Coating | TiAlN |
| Cutting Depth Maximum (CDX) | 0.63″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Application | | External Thread Milling | External Threading | Treading Inserts | |
| Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Thread Form Type (THFT) | UN60 |
| Cutting Direction (HAND) | Right Hand |
