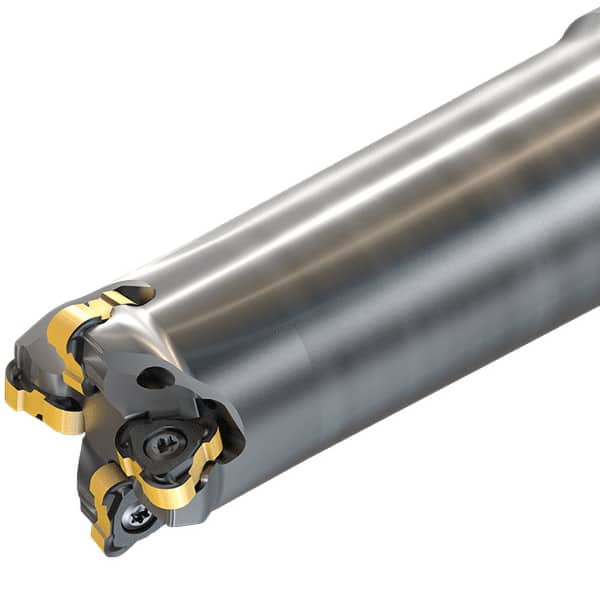

Iscar - Indexable Copy End Mills Cutting Diameter (mm): 23 Cutting Diameter (Inch): 0.9050
Item #: 15109549
Brand: Iscar
Model #: 3320733
Product Specifications
Indexable Copy End Mills; Cutting Diameter (mm): 23 ; Cutting Diameter (Inch): 0.9050 ; Cutting Diameter (Decimal Inch): 0.9050 ; Maximum Depth of Cut (mm): 2.50 ; Maximum Depth of Cut (Decimal Inch): 0.0980 ; Shank Type: Cylindrical
| Cutting Diameter (mm) | 23 |
| Cutting Diameter (Inch) | 0.9050 |
| Cutting Diameter (Decimal Inch) | 0.9050 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.0000 |
| Shank Diameter (Inch) | 0.9840 |
| Shank Diameter (Decimal Inch) | 0.9840 |
| Number of Cutter Inserts | 3 |
| Insert Style | TR |
| Toolholder Style | TR6 |
| Series | TOR6MILL |
| Overall Length (mm) | 140.0000 |
| Overall Length (Decimal Inch) | 5.51100 |
| Toolholder Material | Steel |
| Through Coolant | Coolant Through |
| Weldon Flat | No |
| Number of Flutes | 3 |
| Head Length (mm) | 70.00 |
| Head Length (Decimal Inch) | 2.7550 |
| Shank Length (mm) | 140.000 |
| Shank Length (Decimal Inch) | 5.5110 |
| Maximum Cutting Diameter (Decimal Inch) | 0.9840 |
