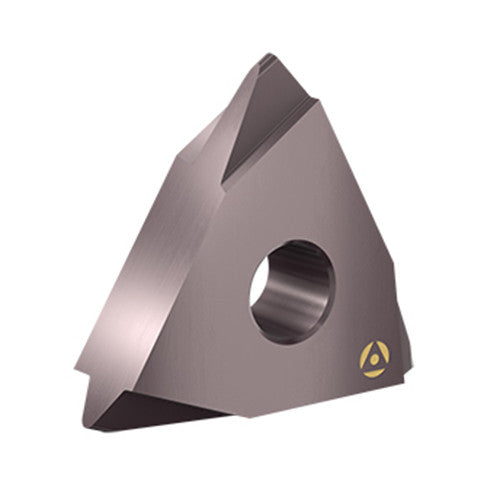

TNMA 55 425 INT AC50F
Item #: FG33062070
Brand: Tool-Flo
Model #: 2412602
| Product Specifications | |
|---|---|
| Threads per Inch (TPI) | 4 Threads/" |
| Application | | Int Ext Threading On Edge | |
| Corner Radius (RE) | 0.025″ |
| Pitch TPI Internal (TPI Int) | 4 Threads/" |
| Insert Thickness (S) | 0.312″ |
| Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 5/8″ |
| Body Material | Carbide |
| Grade | AC50F AlTiN |
| Thread Form Type (THFT) | API Am. Petr. Rotary Shoulder |
| Cutting Direction (HAND) | Right Hand |
