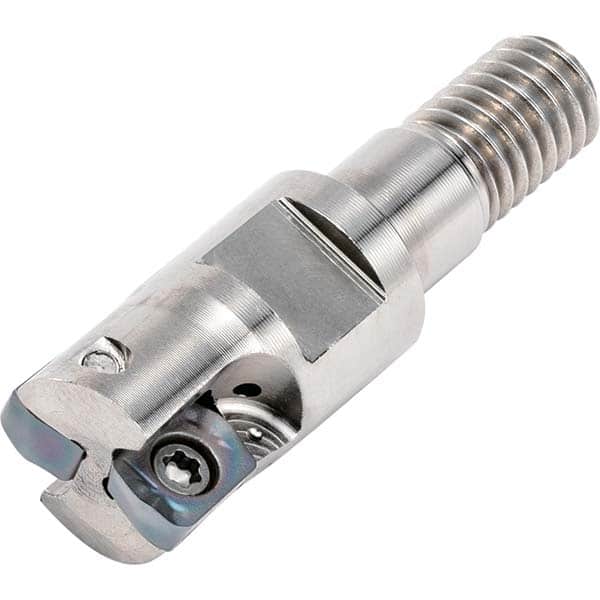

Kyocera - Indexable High-Feed End Mills Cutting Diameter (Inch): 0.3500 Cutting Diameter (Decimal Inch): 0.3500
Item #: 16390965
Brand: Kyocera
Model #: 8849536
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
Product Specifications
Indexable High-Feed End Mills; Cutting Diameter (Inch): 0.3500 ; Cutting Diameter (Decimal Inch): 0.3500 ; Maximum Depth of Cut (mm): 12.70 ; Maximum Depth of Cut (Decimal Inch): 0.5000 ; Shank Type: Modular Connection ; Shank Diameter (mm): 6.5000
| Cutting Diameter (Inch) | 0.3500 |
| Cutting Diameter (Decimal Inch) | 0.3500 |
| Maximum Depth of Cut (mm) | 12.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 6.5000 |
| Shank Diameter (Decimal Inch) | 0.2559 |
| Number of Cutter Inserts | 3 |
| Insert Style | LPGT01 |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Number of Flutes | 3 |
| Maximum RPM | 14000.000 |
| Through Coolant | Yes |
| Head Length (Decimal Inch) | 0.6693 |
| Maximum Cutting Diameter (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 31.5000 |
| Overall Length (Decimal Inch) | 1.24020 |
| Toolholder Material | Steel |
| Series | MFH-Micro |
| Head Length (mm) | 17.00 |
| Manufacturers Catalog Number | MFH0500M06013T |
