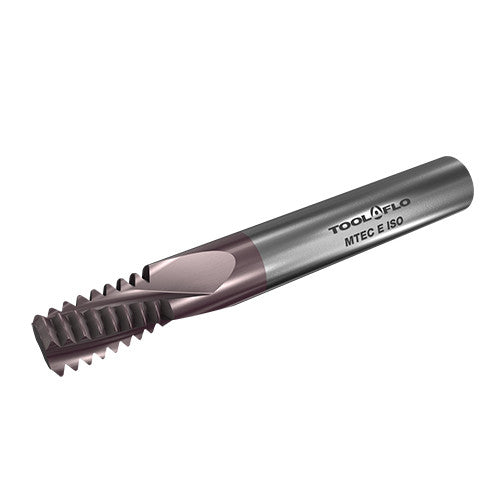

MTEC E 1212D21 2.0ISO AC22
Item #: FG335605754
Brand: Tool-Flo
Model #: 1271227
| Product Specifications | |
|---|---|
| Thread Pitch (TP) | 2 mm |
| Flute Helix Angle (FHA) | 15 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.472″ |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.472″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 3.307″ |
| Grade | AC22 |
| Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 0.827″ |
| Shank Type | Round |
| Body Material | Carbide |
| Coating | TiAlN |
| Connection Code Machine Side (CCMS) | ZYL01G1200h$06 |
| Application | | External Thread Milling | |
| Thread Form Type (THFT) | M60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
