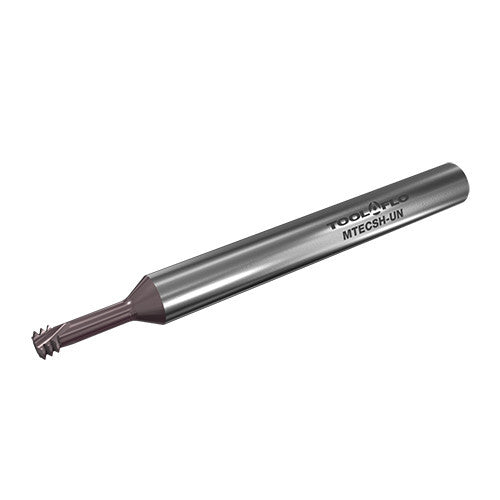

MTECS 0500C13 11UN AC22
Item #: FG335605832
Brand: Tool-Flo
Model #: 1271402
| Product Specifications | |
|---|---|
| Threads per Inch (TPI) | 11 Threads/" |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.449″ |
| Cutting Position | INT |
| Functional Length (LF) | 3″ |
| Usable Length (LU) | 1.36″ |
| Overall Length (OAL) | 3″ |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Grade | AC22 |
| Shank Type | Round |
| Body Material | Carbide |
| Coating | TiAlN |
| Connection Code Machine Side (CCMS) | ZYL01R5000h$06 |
| Application | | Internal Thread Milling | |
| Thread Form Type (THFT) | UN60 |
